Pesticide Warehouse_Tulear_Madagascar [2011- under construction]



project details

Date: 2011 – under construction
Location: Tulear_Madagascar
Description: Complex formed by a Pesticide Warehouse [450sqm] and related ancillary buildings
Client: FAO_Food and Agriculture Organization of the United Nations
Final User: CNA_Centre National Antiacridien de Madagascar
Type of Engagement: Direct appointment
Services: Concept design, design development, production information, tender documentation
Status: under construction



The aim of the project is to provide Madagascar with a facility for the safe storage of pesticides for locust control as well as for the safe disposal of empty pesticide drums.

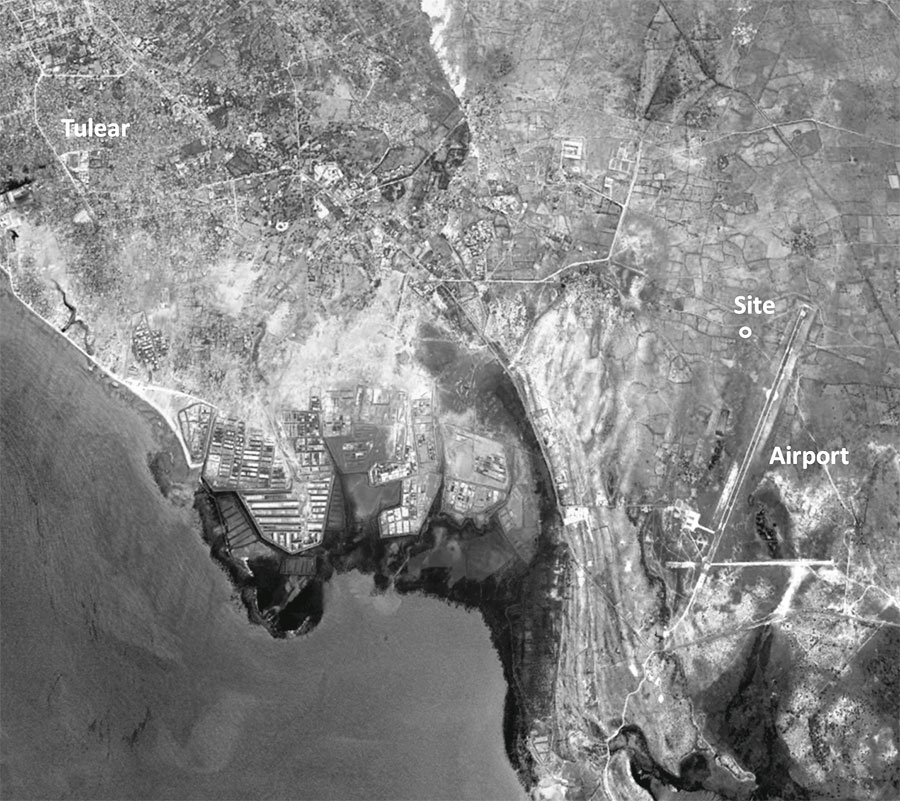

The identified area is about 2,800 m² and it is located in a non residential district in the southern part of Tulear, near and well connected to the port and airport.

key numbers
13
million people threatened by locust plague
2,800
sqm plot area
665
sqm built area
560
pesticide drums contained
relevant issues
  1. In september 2013 has been launched a three-year emergency programme in order to bring back the locust situation dued to the plague which threatened the livelihoods of 13 million people;
  2. Typological innovation against common practise can increase, with few efforts, considerably the quality of the building and its fonctionality;
  3. Low-tech solutions, if correctly used, can perfctly performe when other solutions are impossibile to achieve;
  4. Detailed design has to be always a target for architects and can be persued also in developing countries
see a part of technical documentation FARE has produced




project images
FMD_Madagascar_Infographic_locust-plague

Locust’s plague

The current Malagasy Migratory Locust plague started in April 2012.
The Ministry of Agriculture (MoA) of Madagascar declared a national disaster on 27 November 2012 and in December 2012 MoA requested technical adn financial assistance from Food and Agriculture Organization of United Nations [FAO] in order to resolve the locust plague.
The emergency Programme costs USD 43.9 milion for three consecutive locust campaigns [2013-2016]: the first campaing has ended in August 2014 and 1.5 milion hectares have been treated.
The Pesticide Warehouse in Tulear is part of this first campaing and it will be terminated in August 2015.

[source: Response to the locust plague in Madagascar: Interim Report N. 1 September 2013 – February 2014]

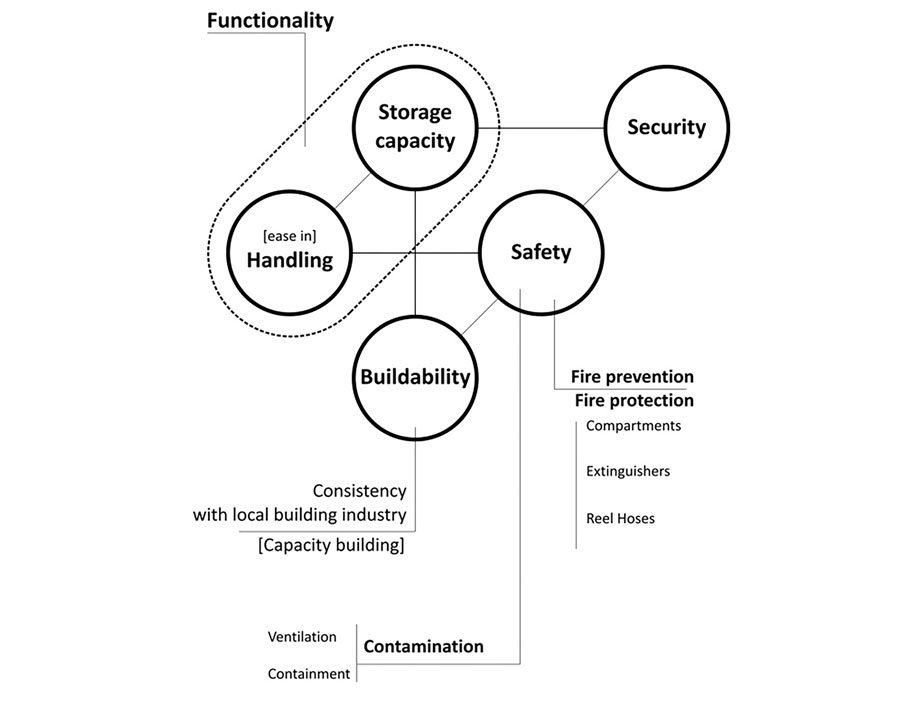

FAREstudio_FMD_FAO_Tulear_Pesticides-warehouse_principles

Factors affecting design: functionality + safety + security + buildability

The experience in developing countries shows the tendency to reduce the level of care as far as standard and performances.
Despite the availability of technical guidelines, handbooks and so on, too often the practical application of references is weak and unsatisfactory. This is certainly related to the chronic limitation in time and finance but it is an attitude that must be resisted and counteracted.
In the case of the Tulear complex the approach has been quite the opposite: the project is demanding and brings to the limit the available skills and resources.

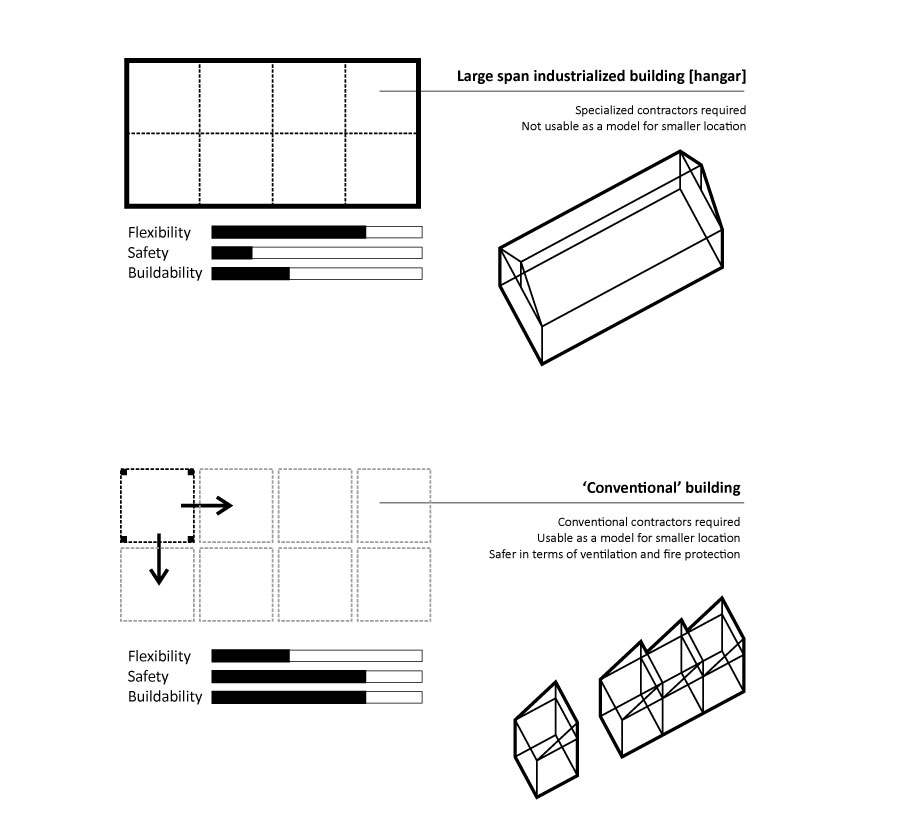

FMD_Typology-scheme



The specific location and the circumstances of the complex suggests other criteria to be considered:

  • the building must be as easily realizable as possible, both in terms of speed and simplicity
  • the model should incorporate the logic of its own expansion/replicability when and if required

The challenge is to be innovative in typological solutions and ‘robust’ [consolidated] in technology.
This is the best condition in order to achieve the required feasibility for the project.

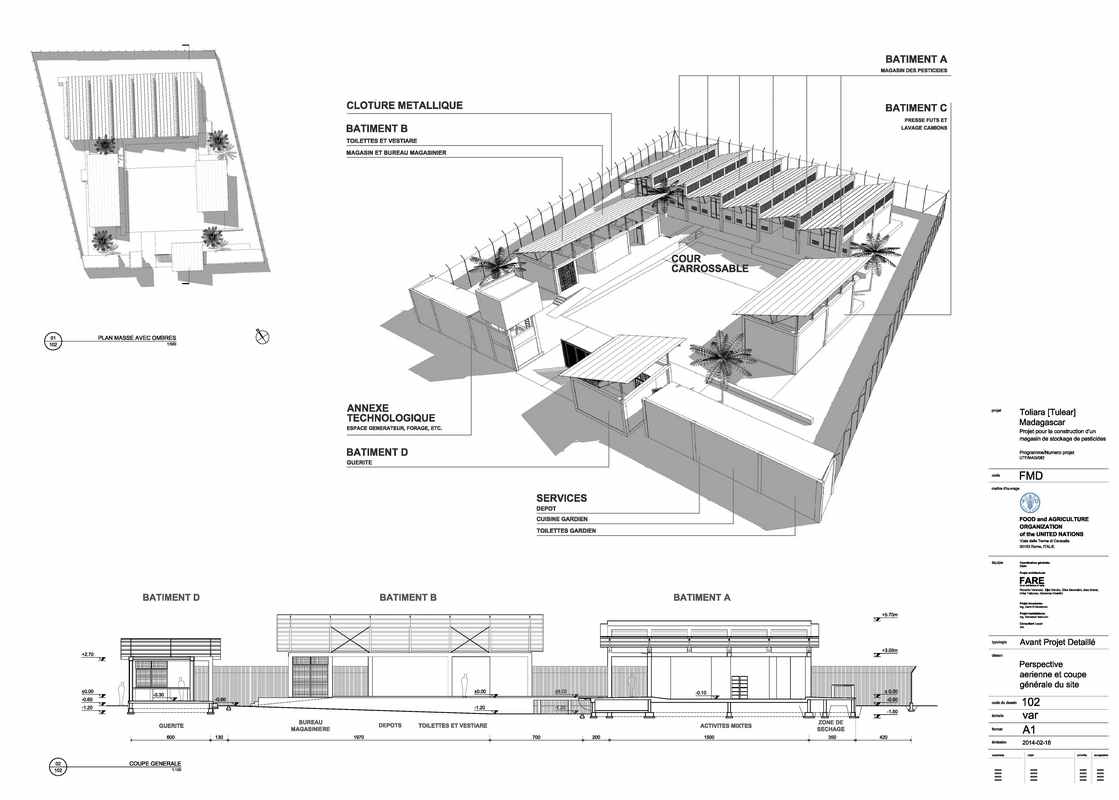

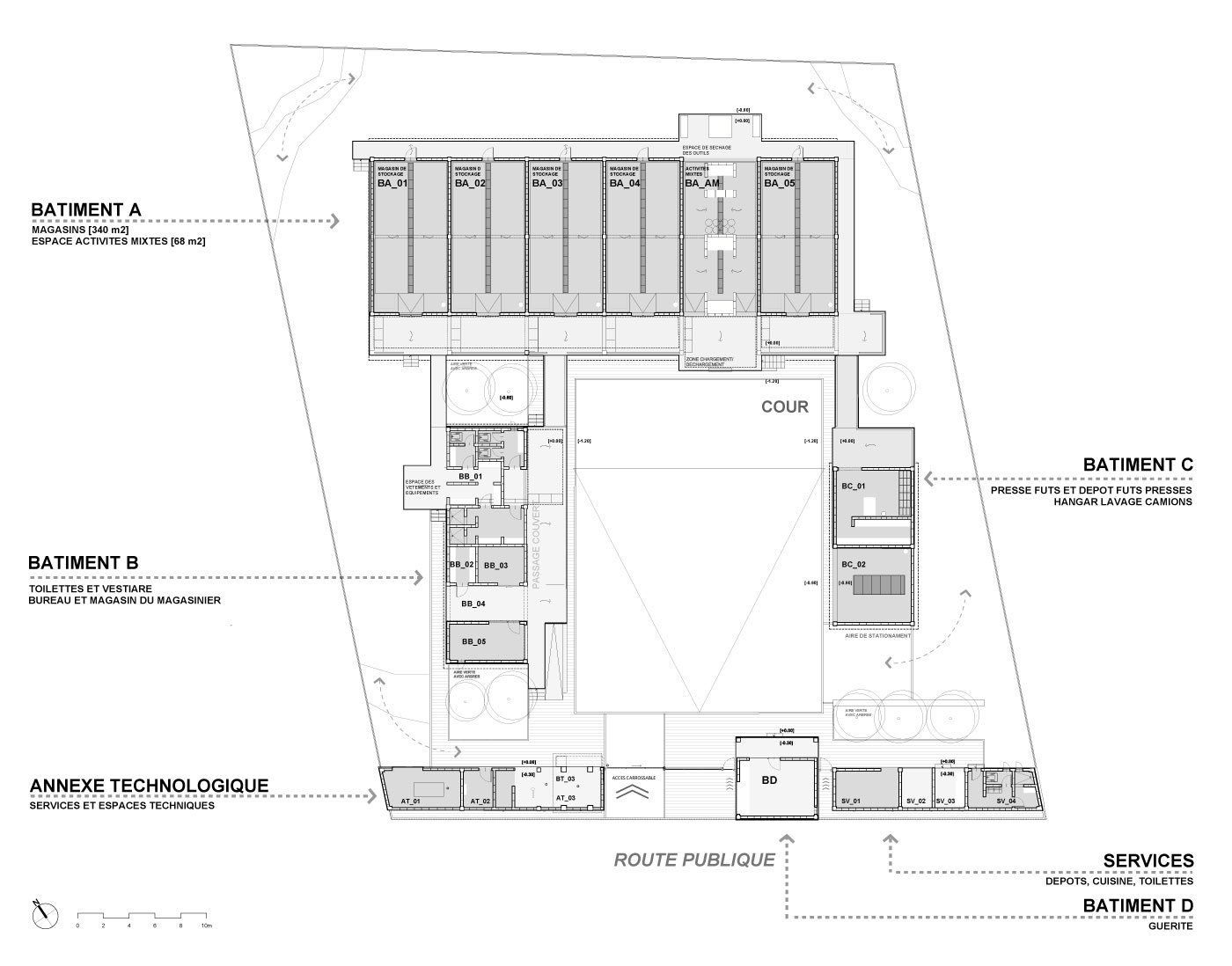

FAREstudio_FMD_Madagascar_FAO_locust

The storage room as the whole complex is built on a raised platform so to avoid the consequences of flooding if any but also, and above all, to enforce the principle that the pesticides should never be allowed to touch the soil.

Main building acts as pesticide store, while three other constructions are dedicated to technical machinery [drum crushing equipment and power generator] and lodge for the watchman, including facilities for the whole complex.

The area of the site not dedicated to buildings and to the yard is left as landscaped; part of the excavated soil is used to form mounds. Given the nature of the area there will be no major planting.

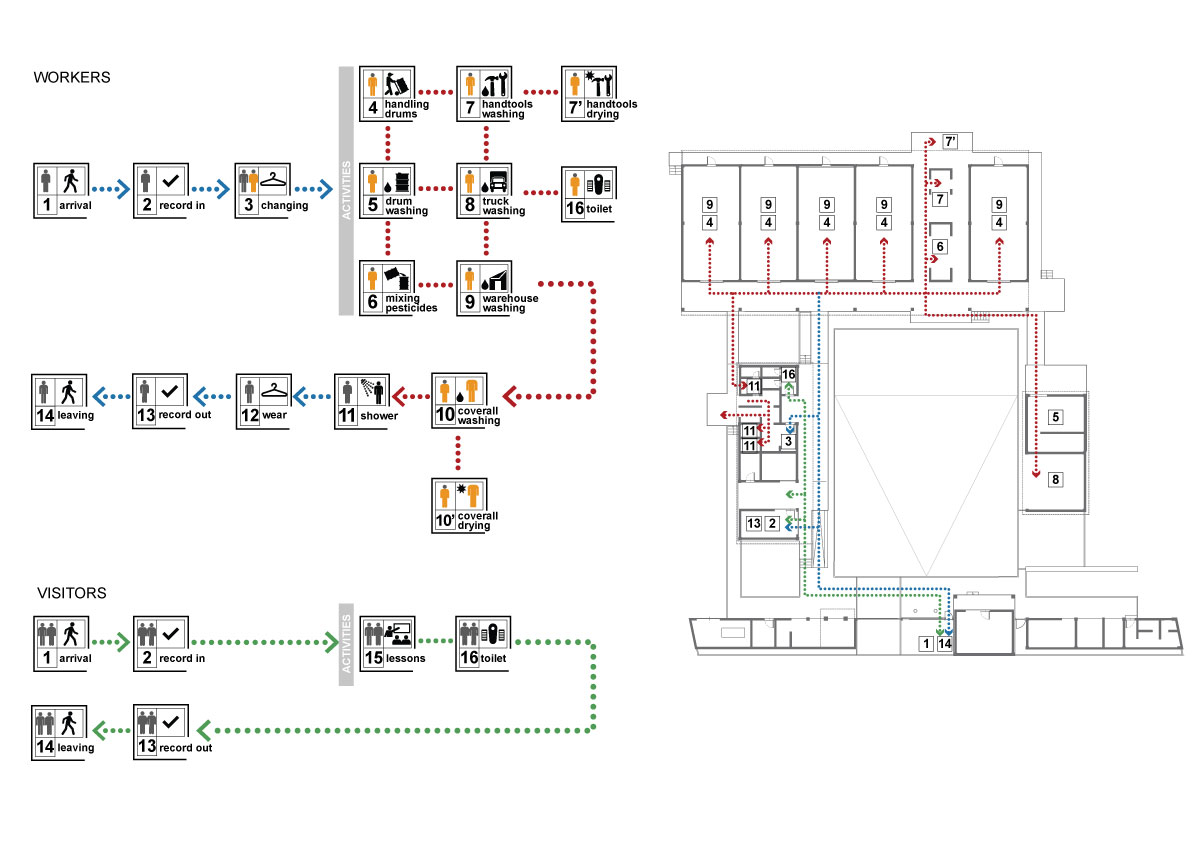

FMD_percorsi





Specific attention has been devoted to circulation issue as main factor dictating overall arrangement and all functions face a central courtyard in order to facilitate the access to the inner spaces.
The project includes other secondary buildings, where various functions are concentrated: the warehouse manager’s office,  the warden’s office, the deposit for crushed drums, shower and wc for the staff and other technical spaces.

The main principle about the circulation of the people is the clear demarcation between clean and potentially contaminated areas.

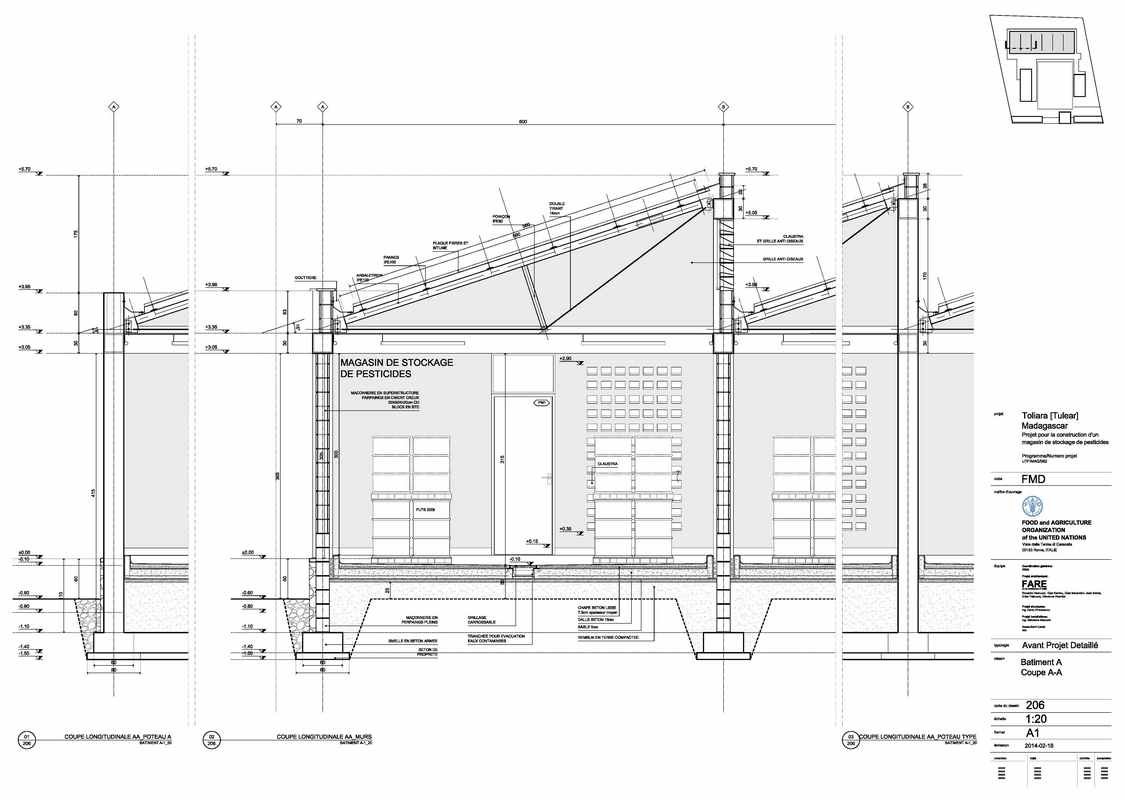

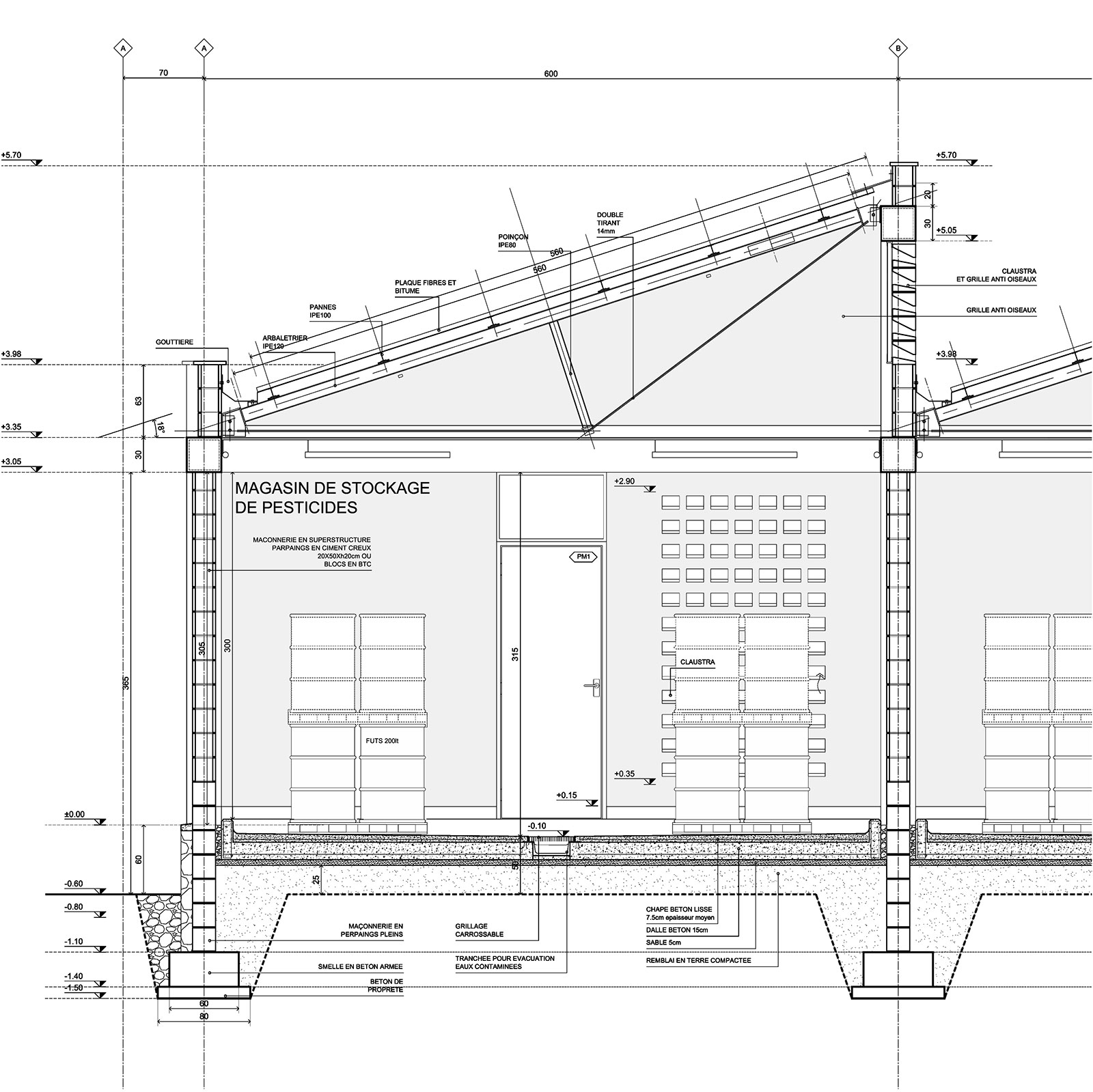

FAREstudio_FMD_Pesticide-warehouse_Madagascar_Technical-section



Construction is based on the repetition of similar components for all diverse buildings, all of them highly standardized and, as such, further expandable in the future.

In terms of building technique and geometry all buildings share the same solutions.

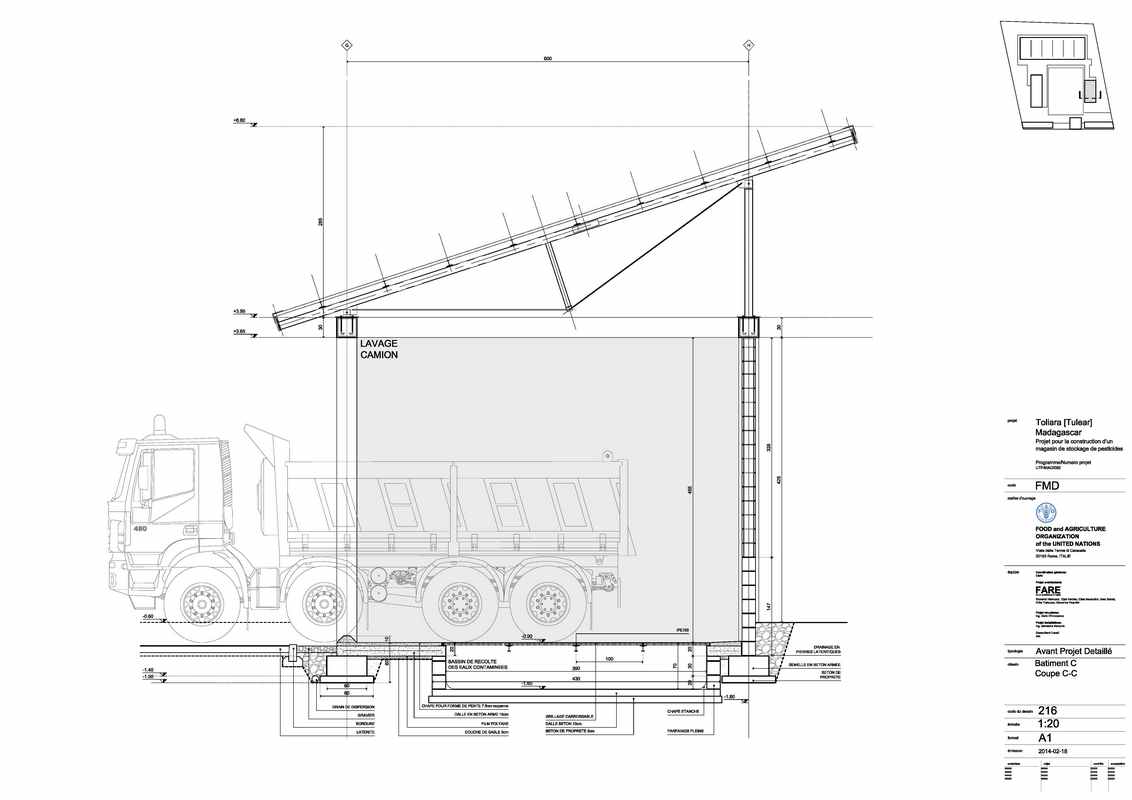

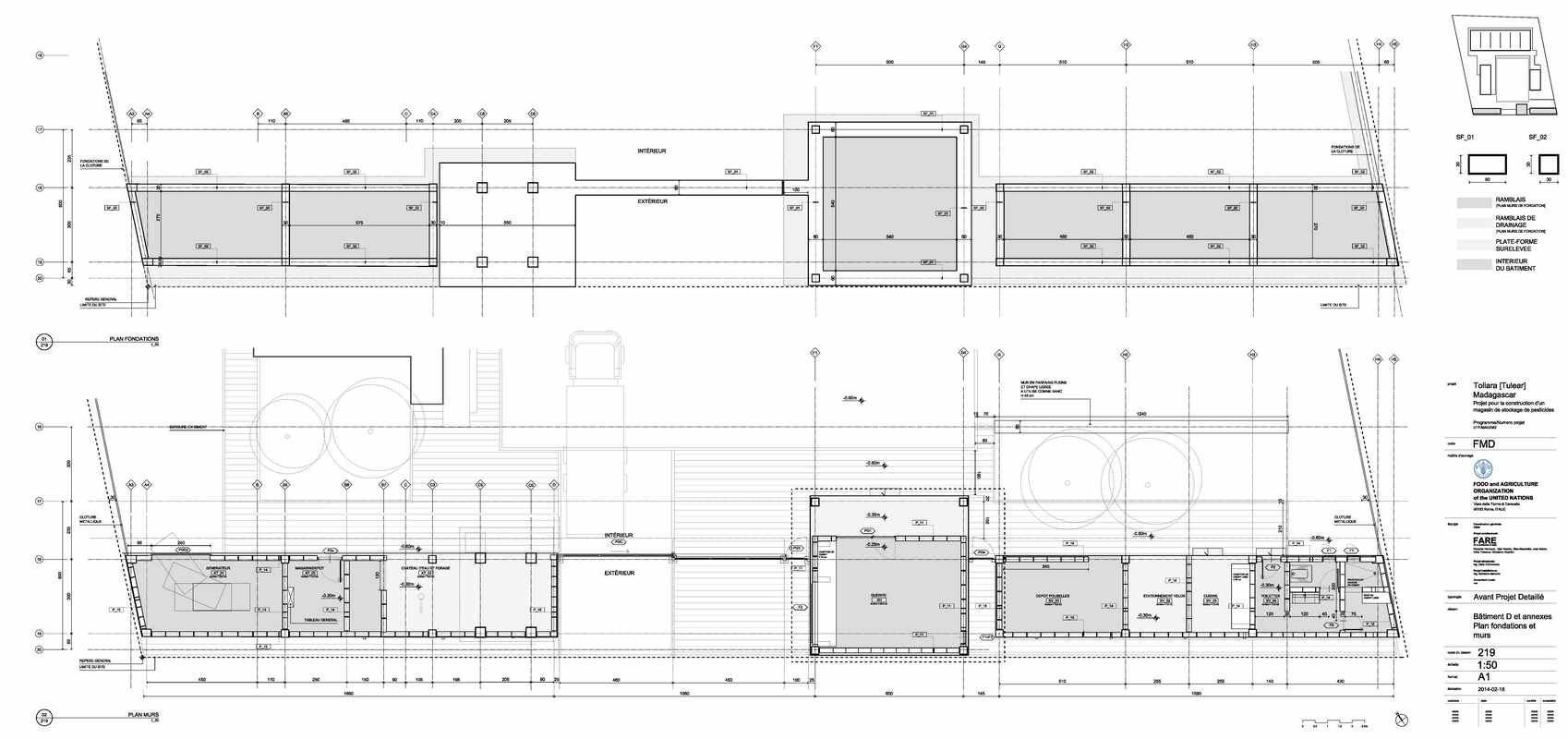

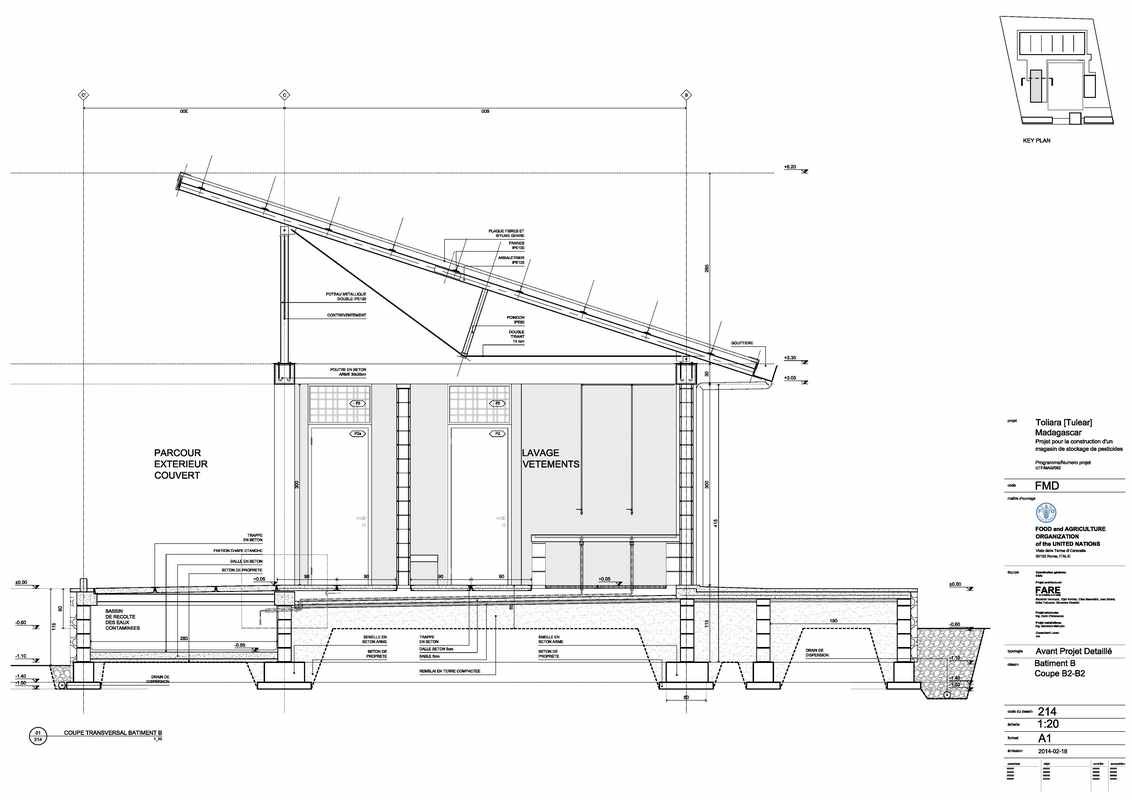

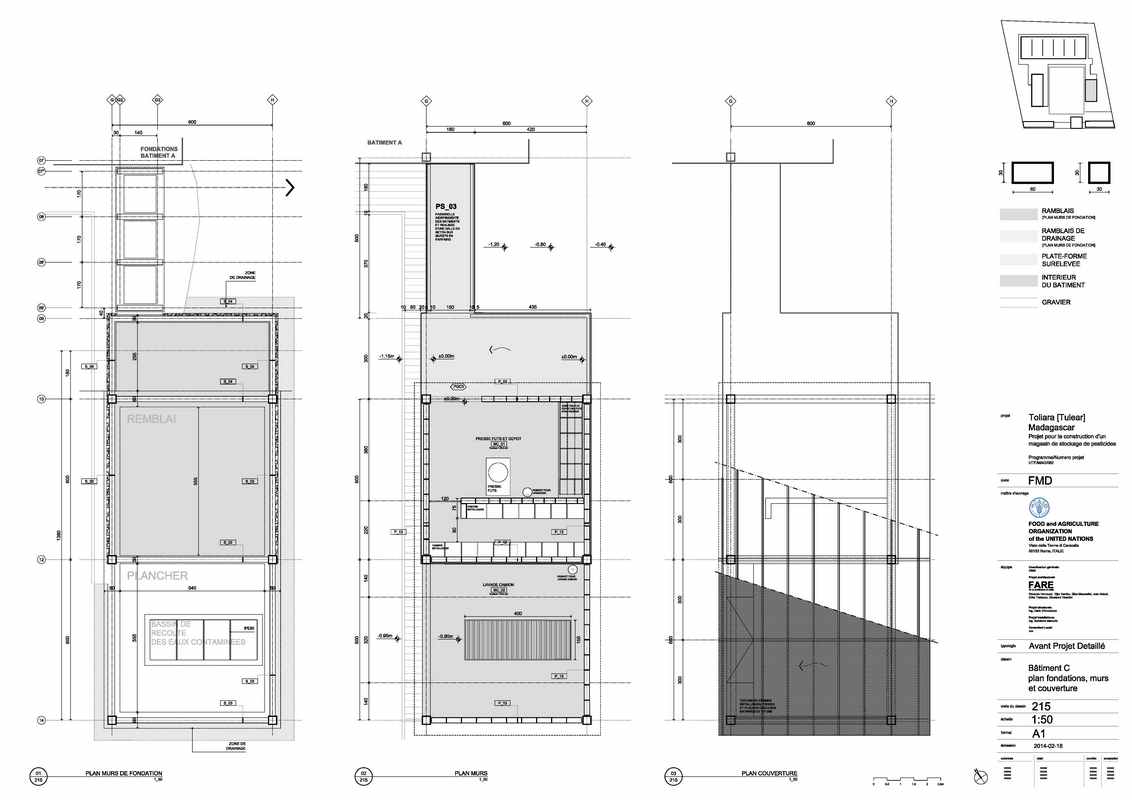

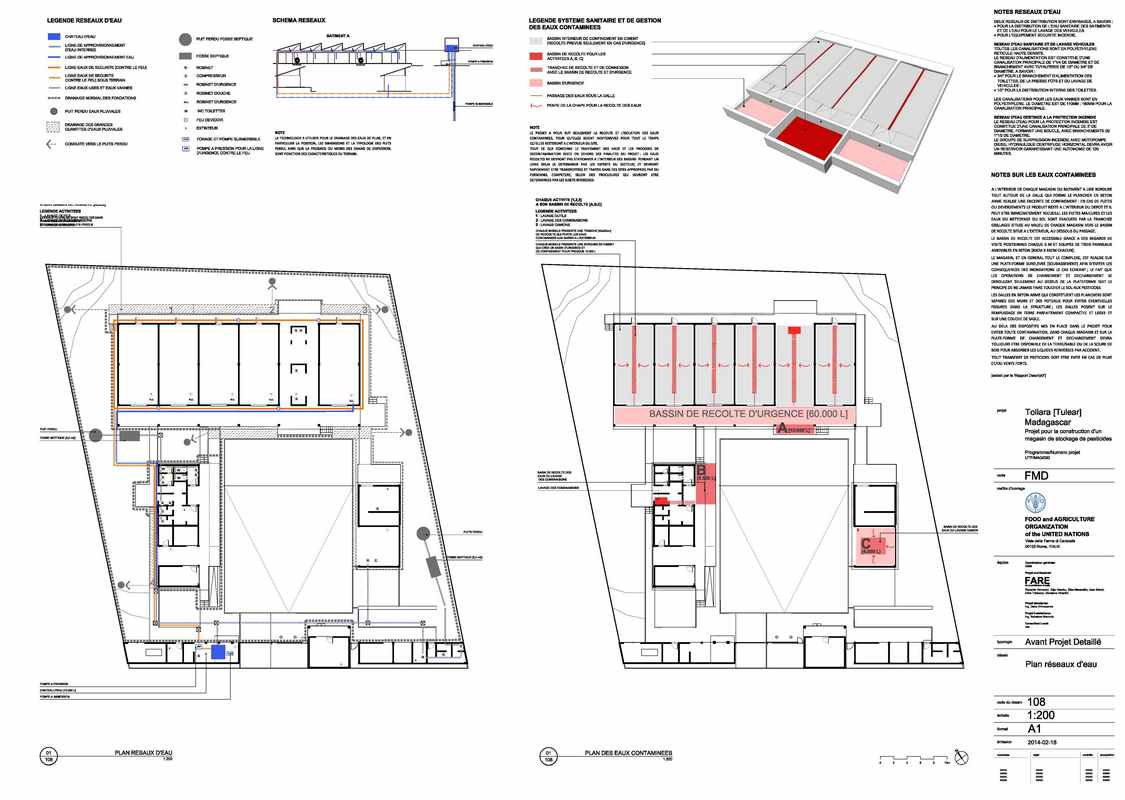

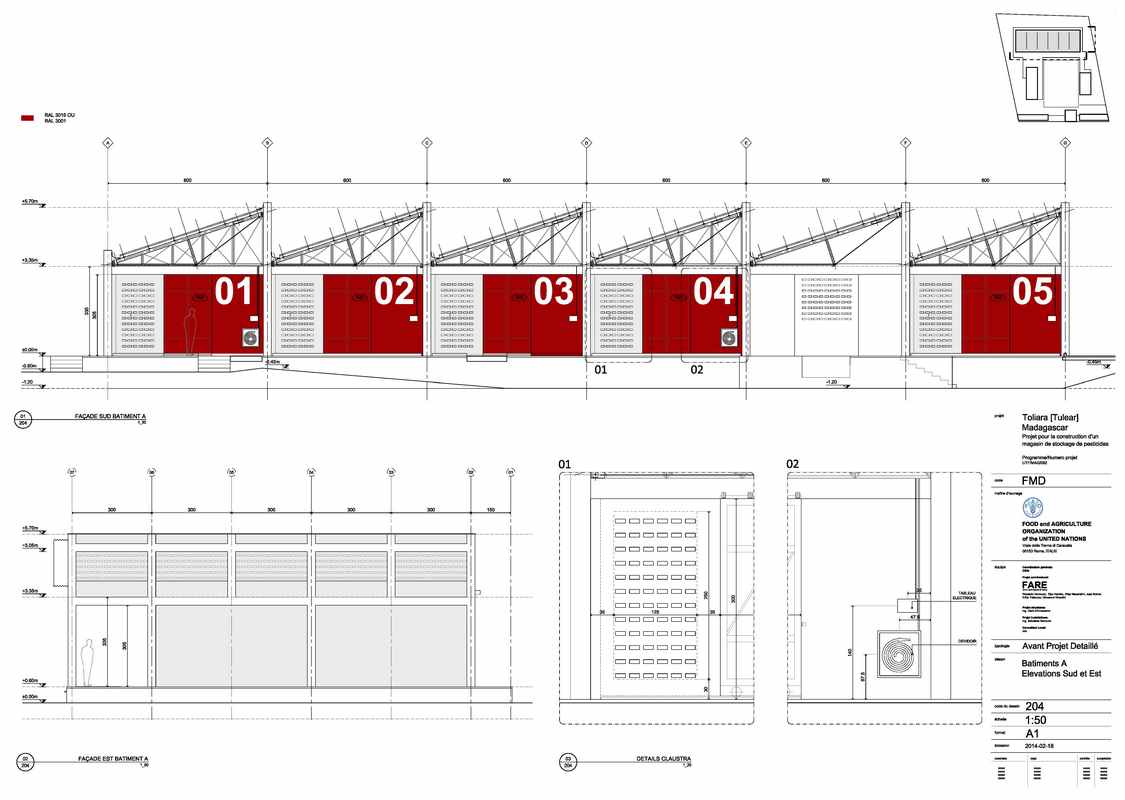

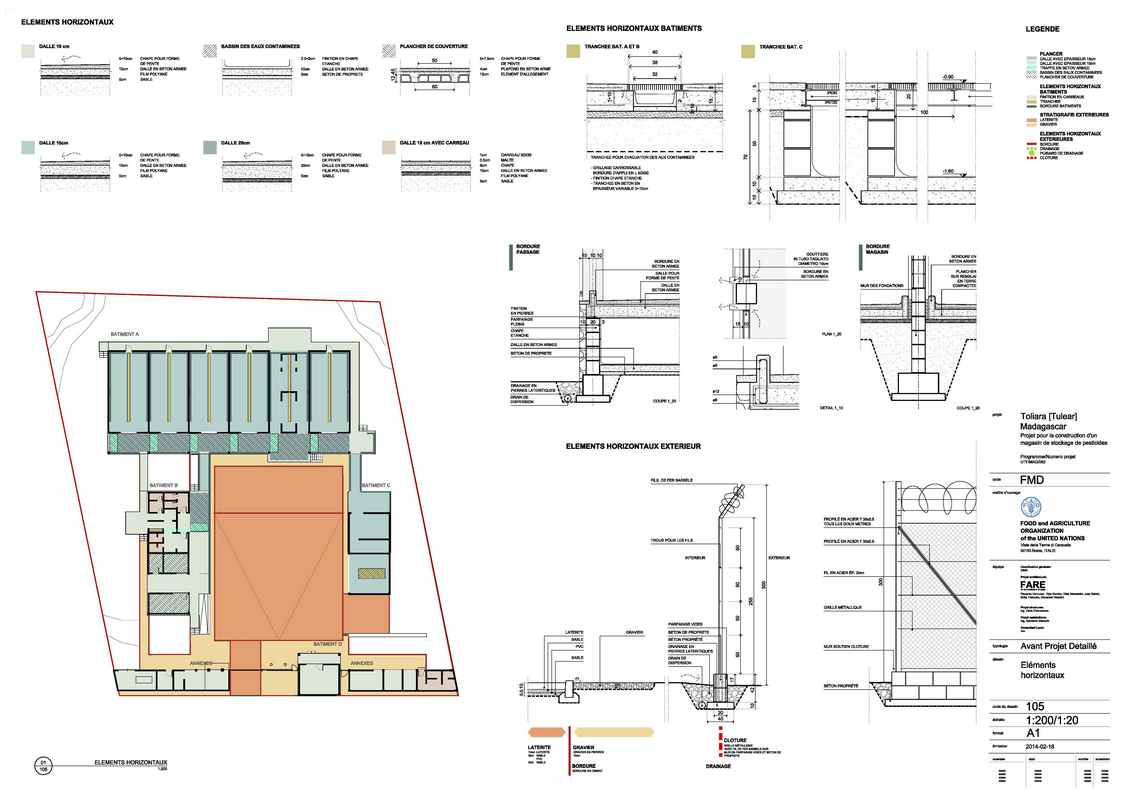

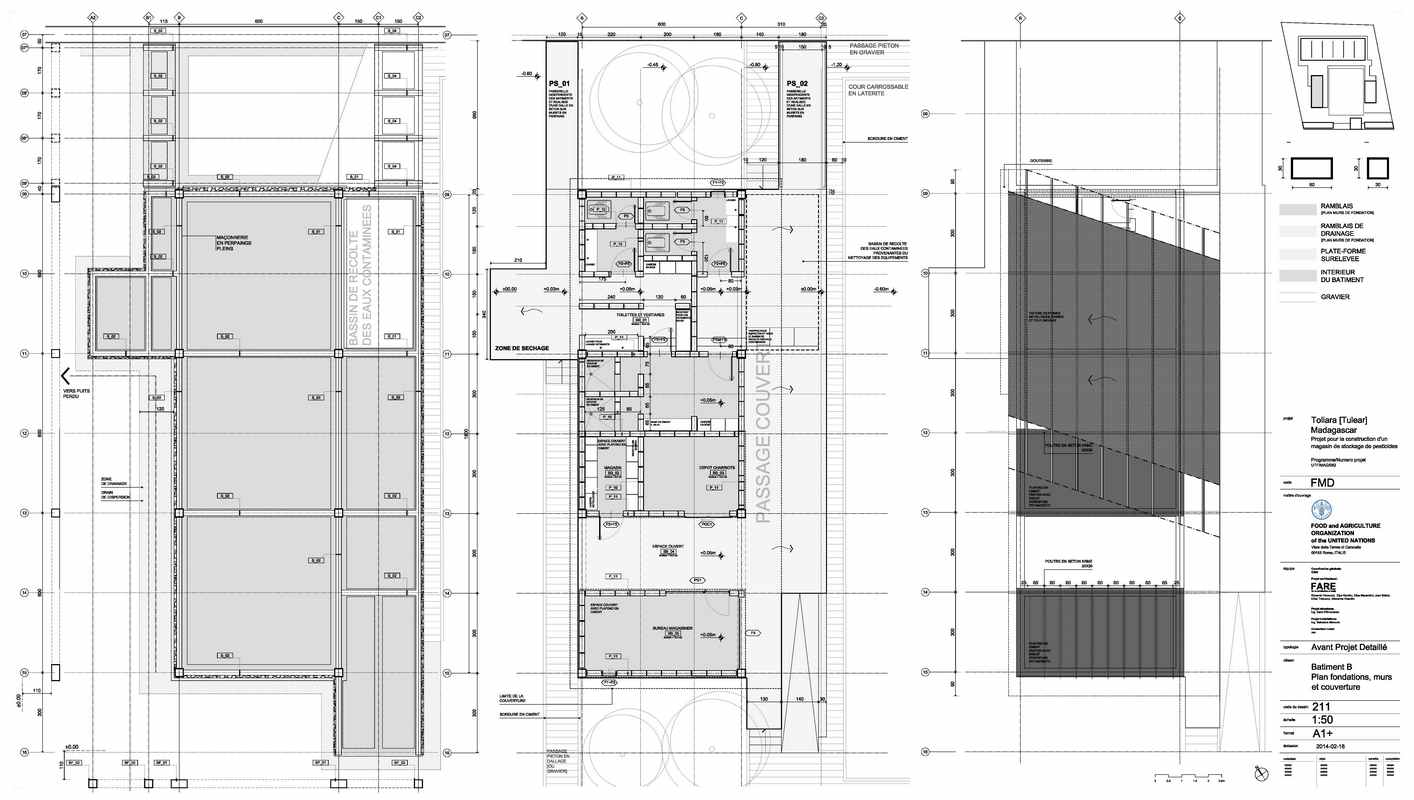

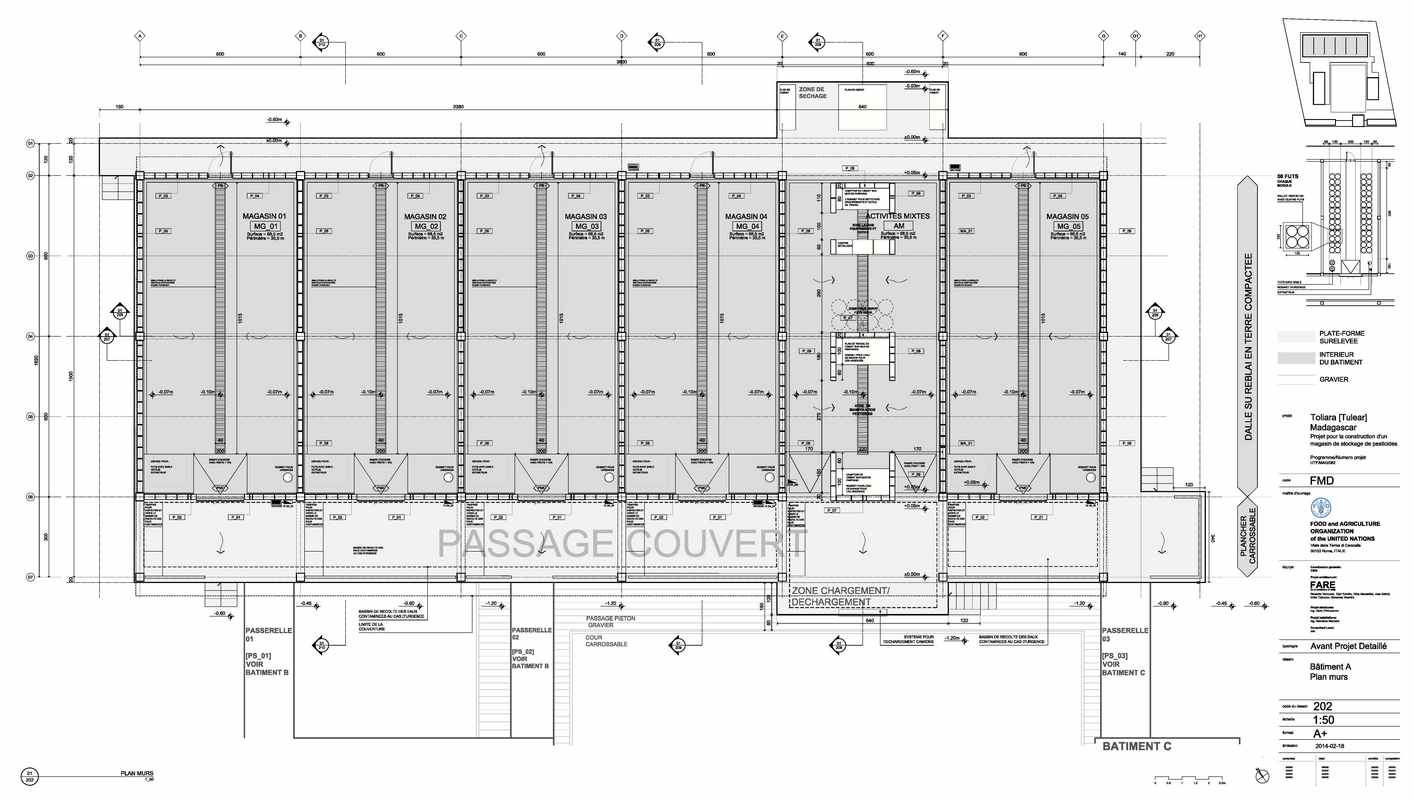

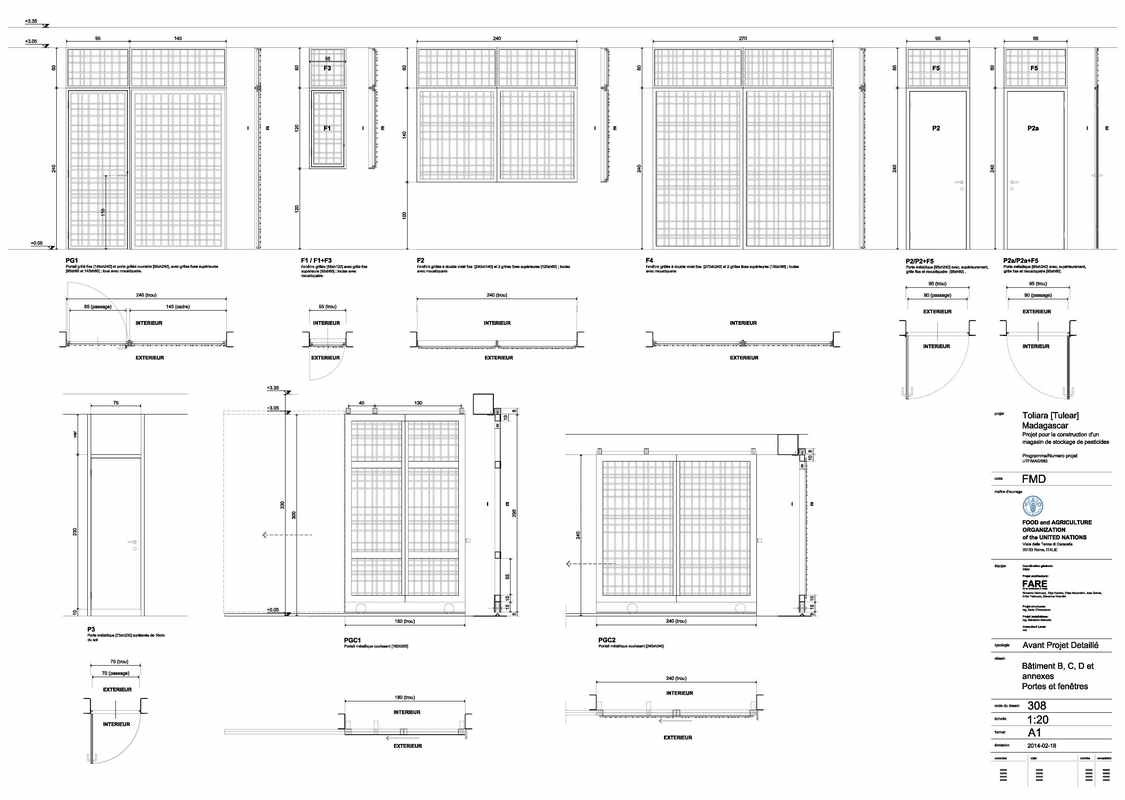

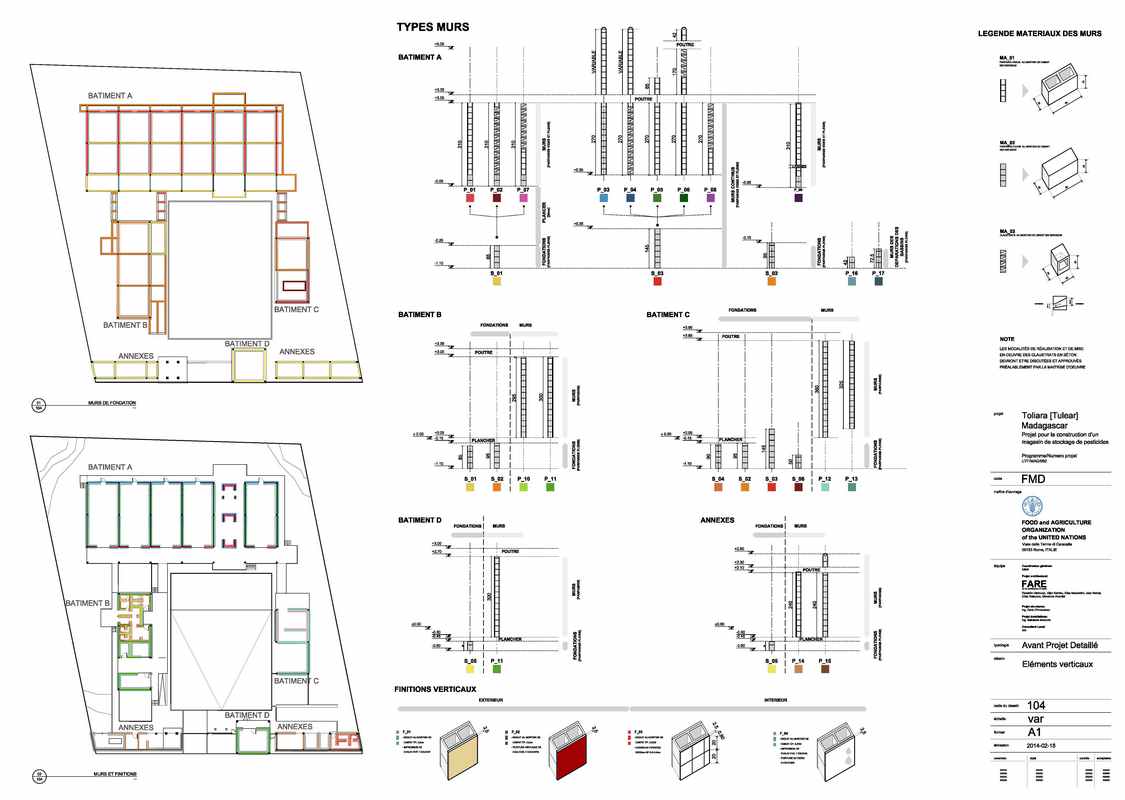

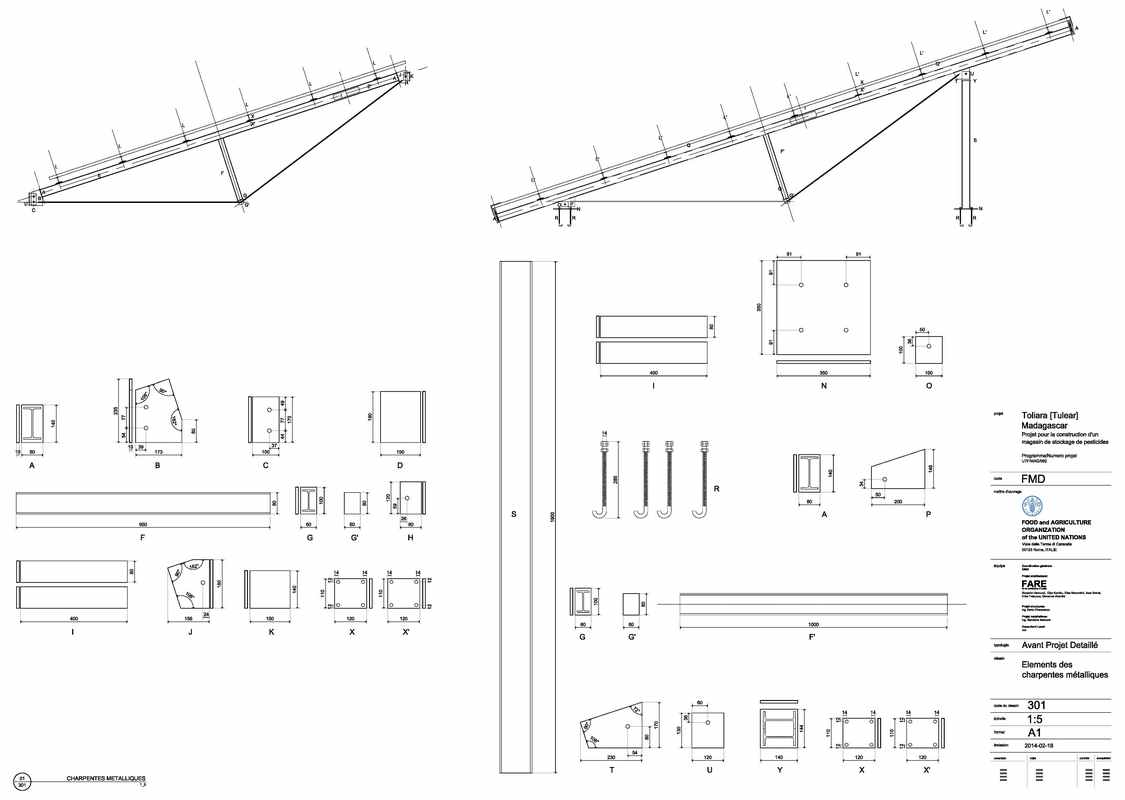

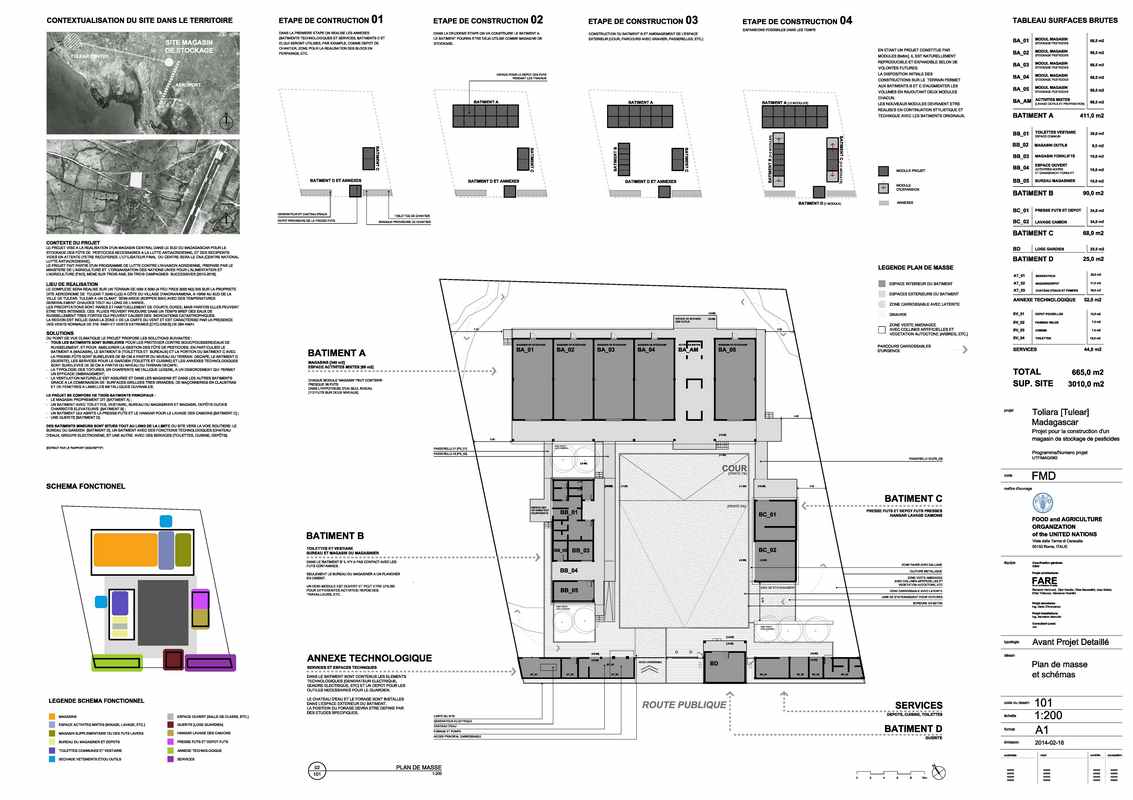

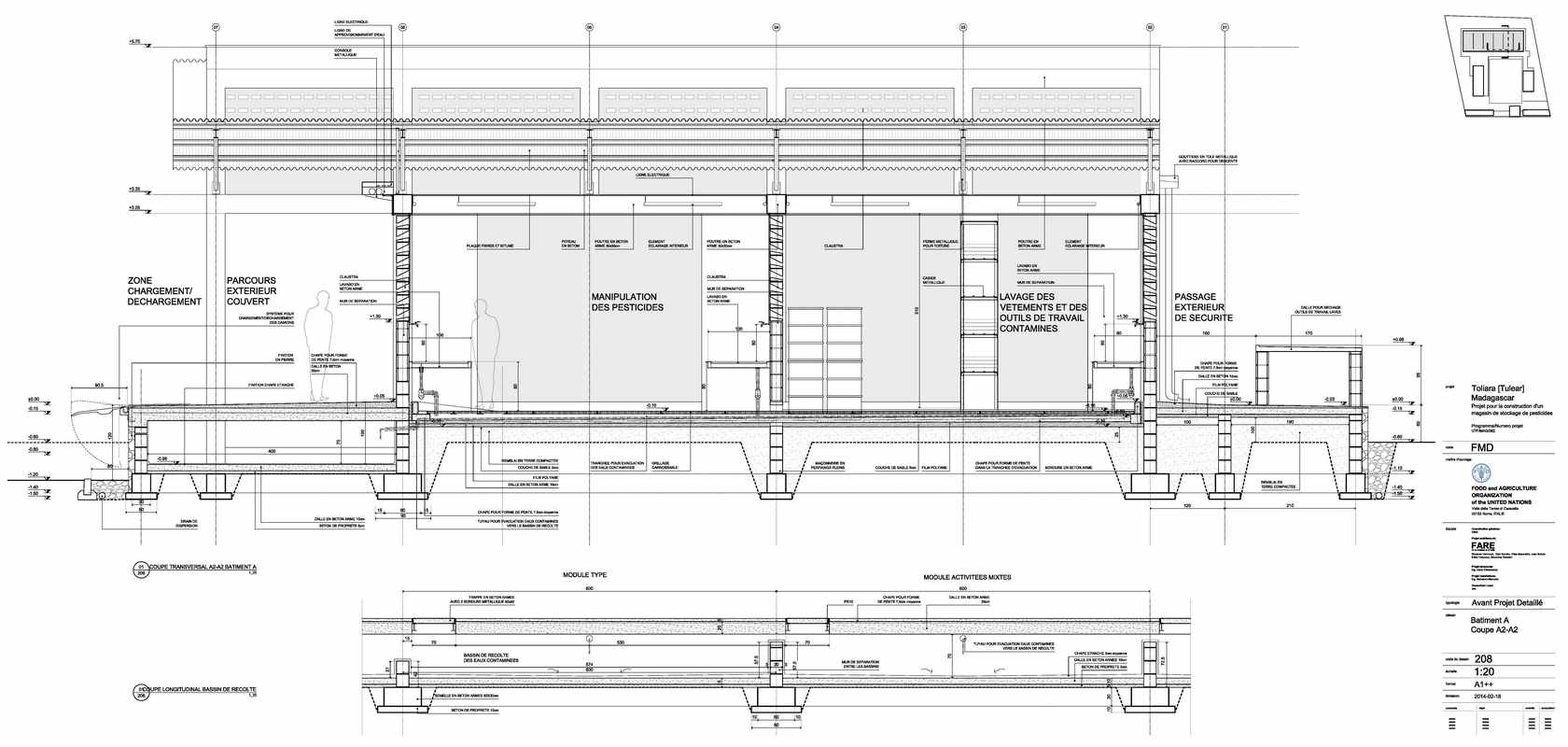

A part of the technical drawings produced for the construction



The project, originally started on 2011, in 2013 has been reviewed and is currently under construction.
